The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. Valves weigh only 5.2 ounces and have two .25* side mounting holes spaced 1.00* apart. Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.
Sale!

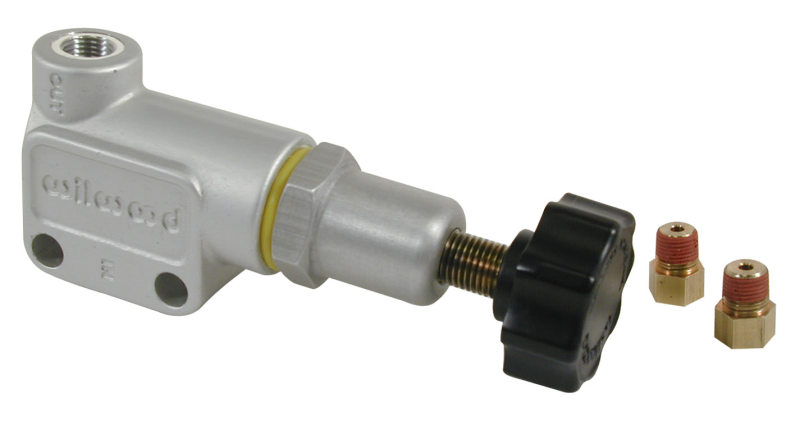

Wilwood Proportioning Valve – Knob Adjust
Original price was: $57.56.$53.29Current price is: $53.29.
Availability: 38 in stock
| Weight | 0.47 lbs |
|---|---|
| Dimensions | 8 × 4.8 × 1.8 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | false |
| prop_65 | Unknown |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| regular_stock | t |
| upc | 889545067934 |
| brand | Wilwood |
| part_number | 260-8419 |
