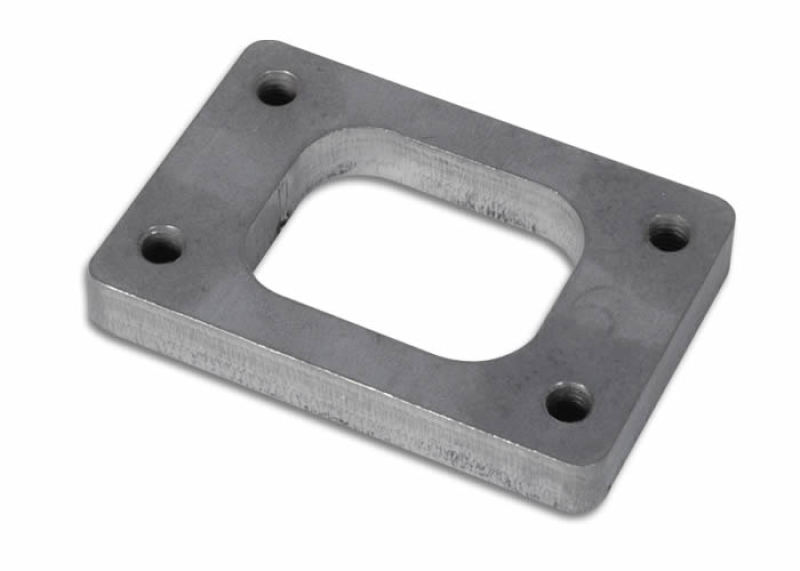

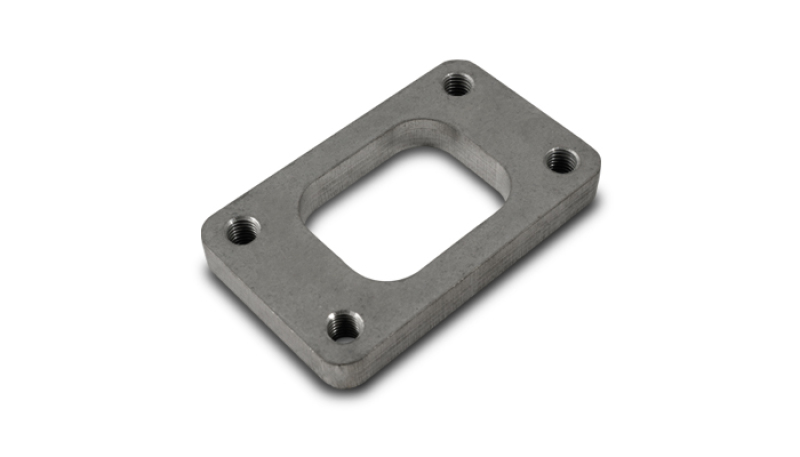

Vibrant GT30R/GT35R/GT40R Turbo Inlet Flange Mild Steel 1/2in Thick (Tapped Holes)

Vibrant Performance mild steel turbo flanges are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, complex multi bolt and block off turbo flanges are all available.
Turbo Flange; 44.5mm BHCCH; 85.8mm BHCCW; Mild Steel; 0.5 in. Thickness; M10x1.5 BHTS; 44.5mm Port H; 57.2mm Port W; 66.8mm Overall H; 108.2mm Overall W; 57.2mm Overall Port W;
Precision laser cut and CNC machined to ensure a perfect fit to your turbo components
