UMI Performance 82-92 GM F-Body Boxed Style Weld-In Subframe Connectors

Minimize chassis flex and increase performance capabilities on your 1982-1992 GM F-Body with boxed style weld-in subframe connectors from UMI Performance. Subframe connectors are a must chassis upgrade when racing and hard driving habits are present. They greatly improve your car’s handling ability while reducing t-top squeaks, dash rattles and quarter panel flexing. Subframe connectors essentially tie the front and rear steel subframes together, resulting in a stiffened and strengthened chassis; allowing better weight transfer and improved traction when launching. When strength is a concern, square tubing has greater torsion resistance over tubular designs. Subframes do not effect ground clearance and weld-in style requires no bolts to tighten ever and less chance of flex compared to bolt-in types.

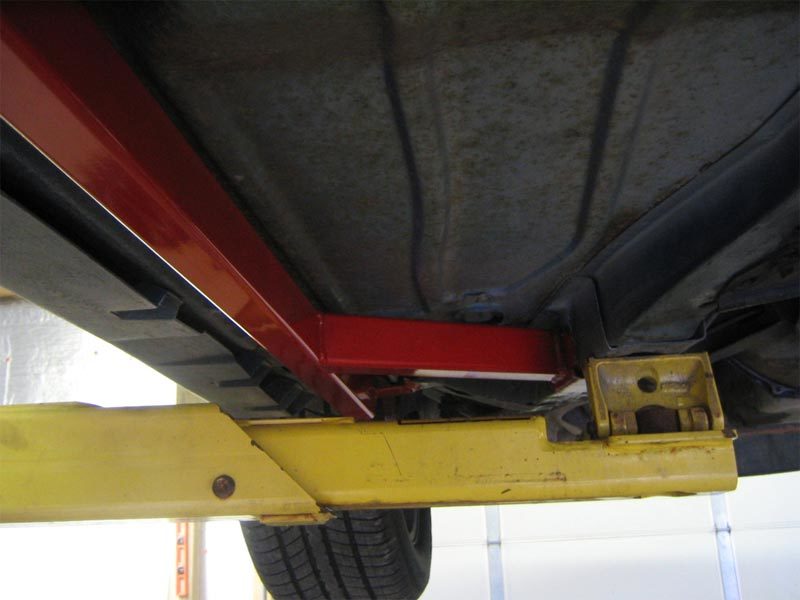

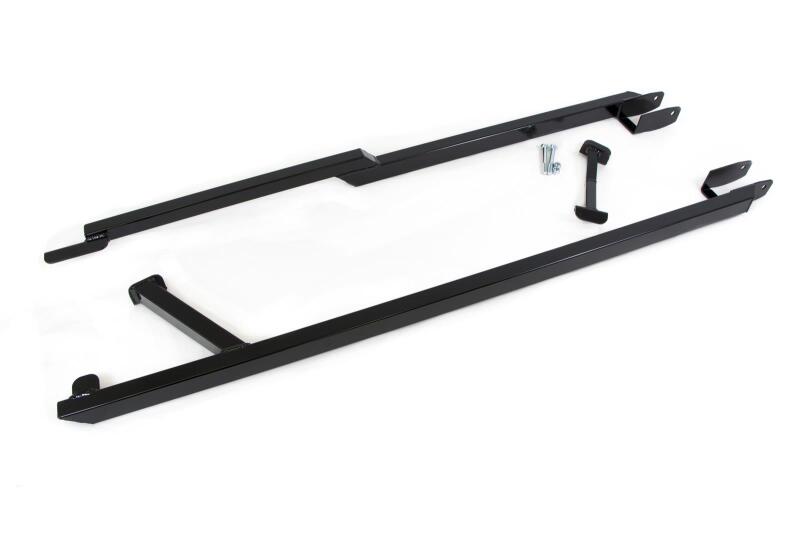

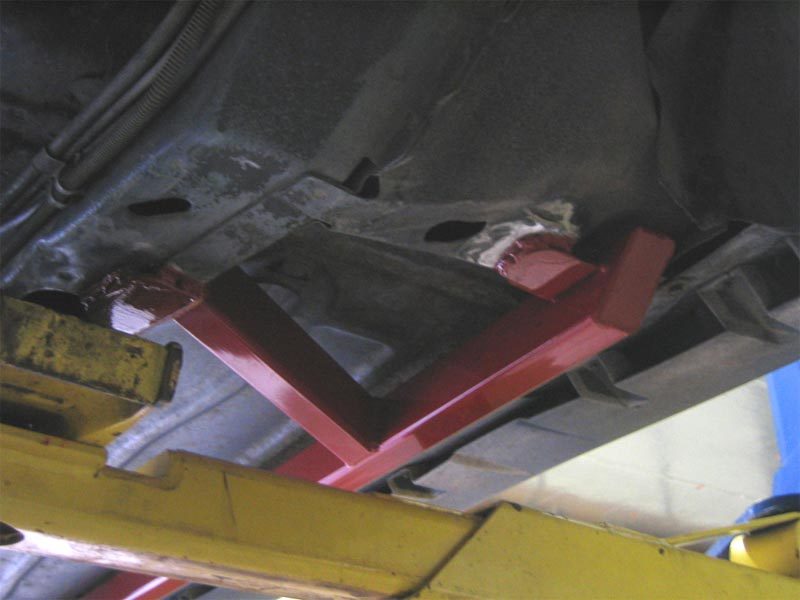

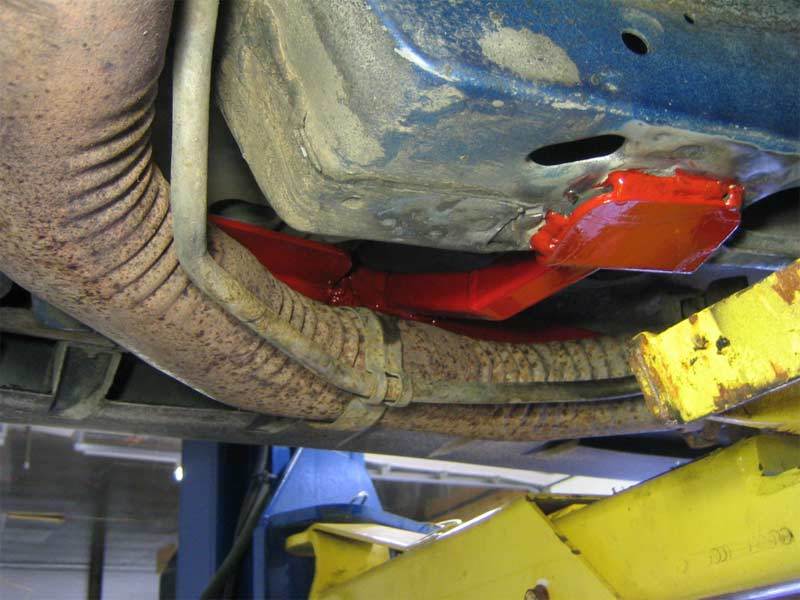

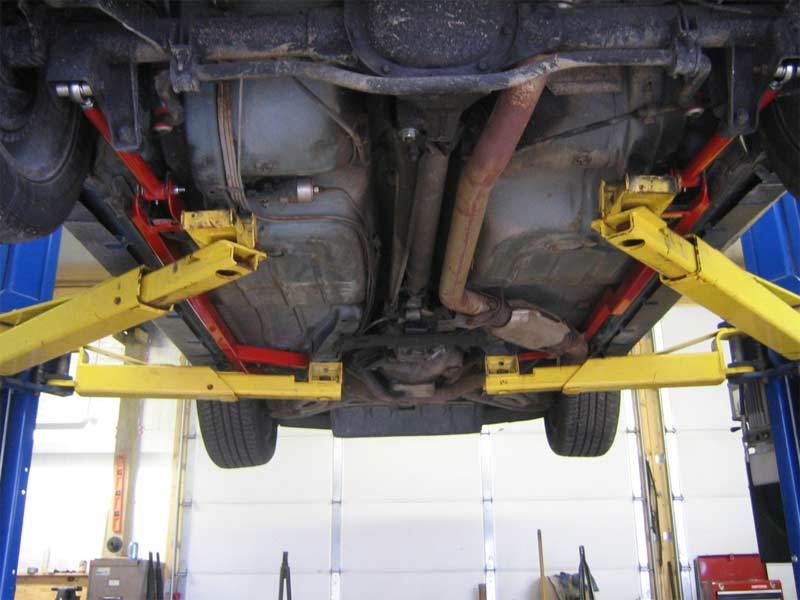

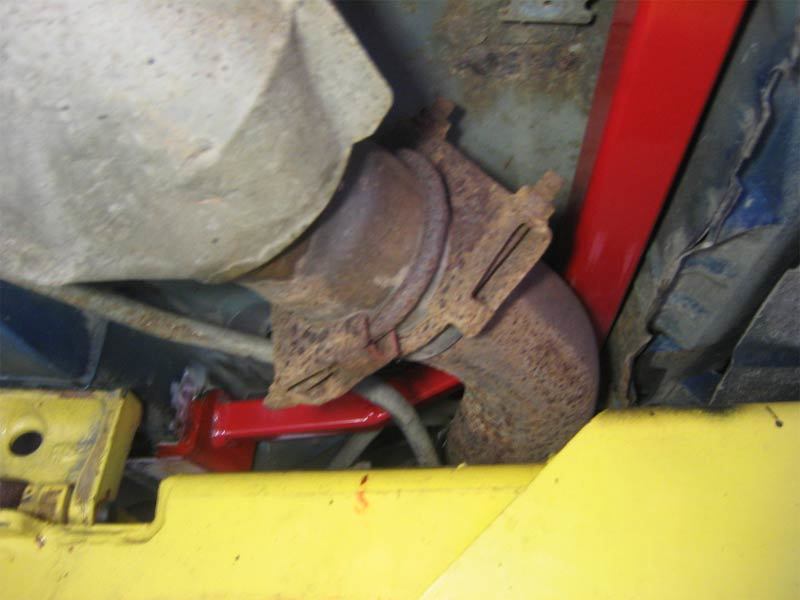

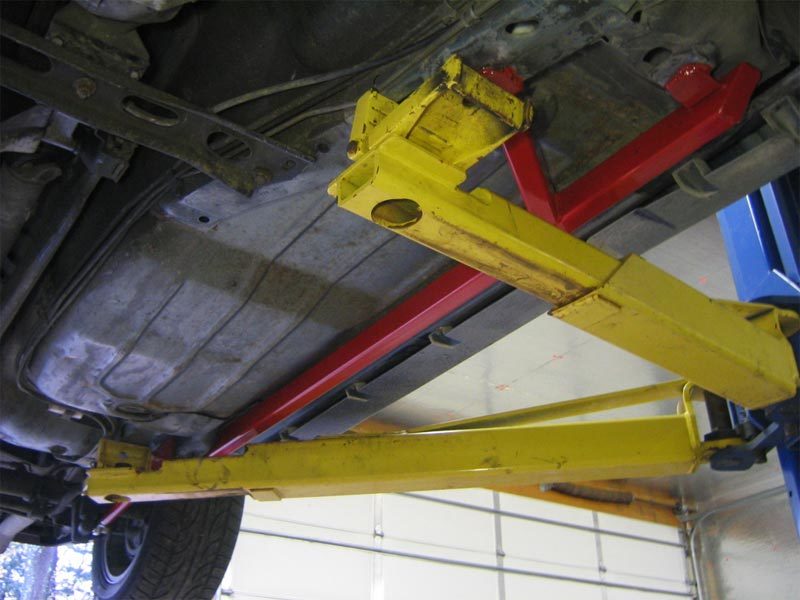

Our subframe connectors for the third generation F-Body are one of the strongest set-ups on the market. This unique design utilizes a 3 piece design, allowing (6) major weld points through out the chassis of the vehicle. Subframe connectors fit hard top, T-Top and convertible models.

Features:
– Built using 2.000″ x 1.250″ x 0.120″ Mild Steel Rectangular Tubing
– CNC Machined 0.188″ Thick Mild Steel Mounting Points
– Uses Control Arm Mounting Point for Increased Strength
– Precision MIG Welded Construction
– Brilliant Durable Powder Coat Finish

Installation:
Weld-in only, installs in approximately 2 hours, all necessary hardware and detailed installation instructions included.

Fitment:
Chevrolet Camaro Base 1988
Chevrolet Camaro Berlinetta 1982 to 1986
Chevrolet Camaro Iroc-Z 1985 to 1990
Chevrolet Camaro LT 1987
Chevrolet Camaro RS 1989 to 1992
Chevrolet Camaro RS Heritage Edition 1992
Chevrolet Camaro Sport 1982 to 1987
Chevrolet Camaro Z28 1982 to 1987
Chevrolet Camaro Z28 1991 to 1992
Chevrolet Camaro Z28 Heritage Edition 1992
Chevrolet Camaro Z28 Indianapolis 500 Pace Car 1982
Pontiac Firebird Base 1982 to 1992
Pontiac Firebird Formula 1989 to 1992
Pontiac Firebird S/E 1982 to 1986
Pontiac Firebird Trans Am 1982 to 1992
Pontiac Firebird Trans Am GTA 1989 to 1992
