Skunk2 Racing is proud to announce the next generation of high performance intake manifolds! The much anticipated Ultra Race Centerfeed Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.

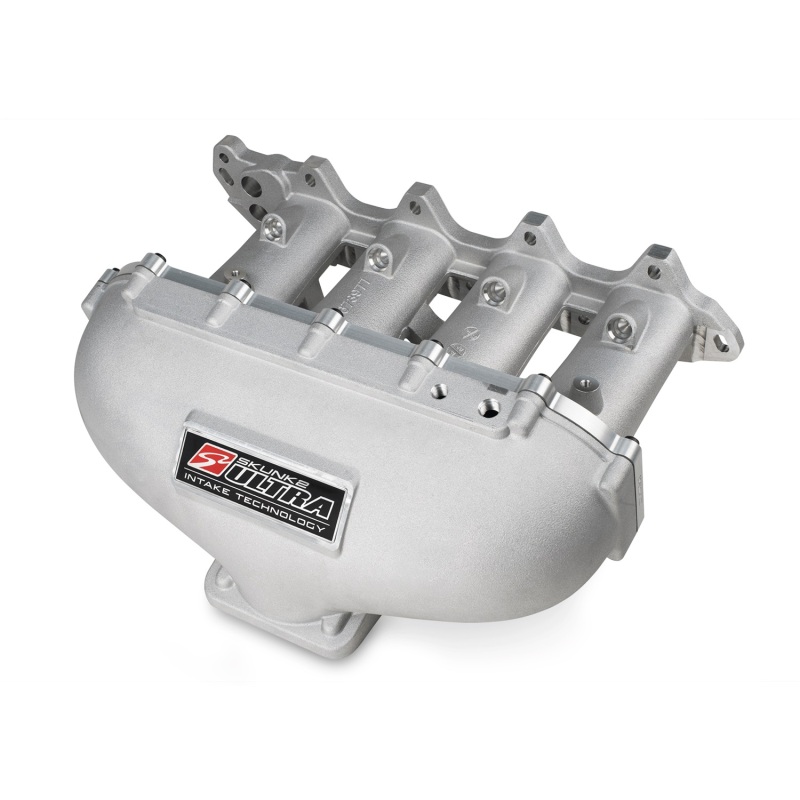

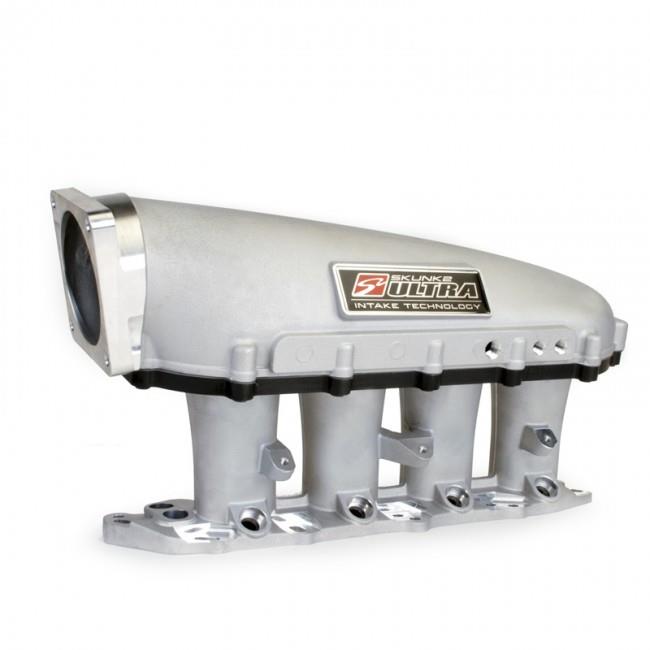

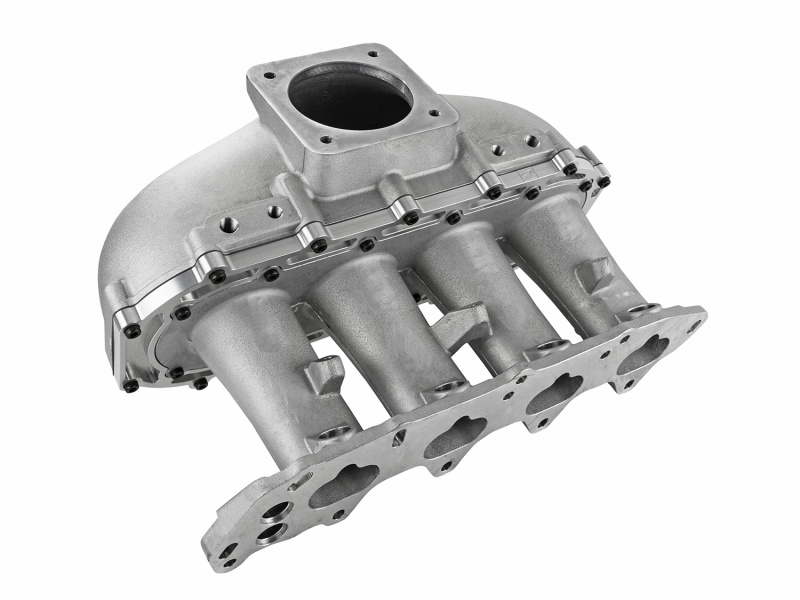

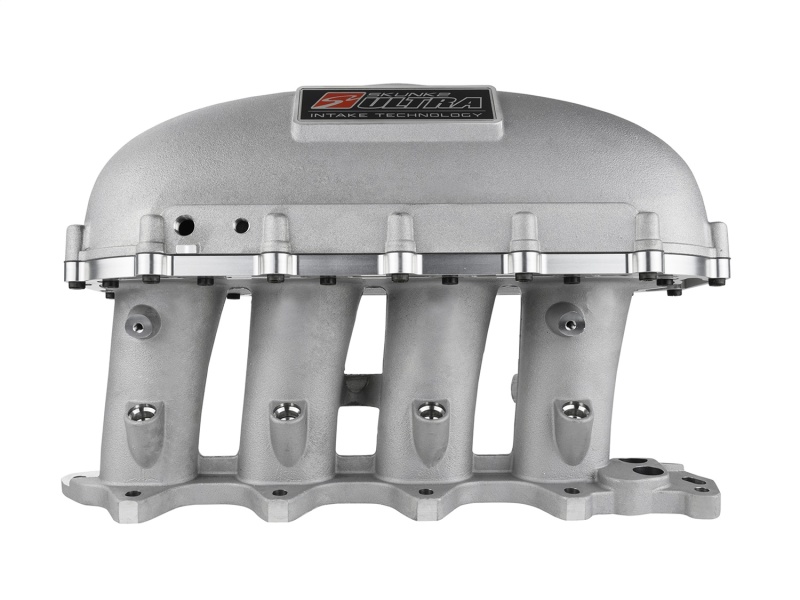

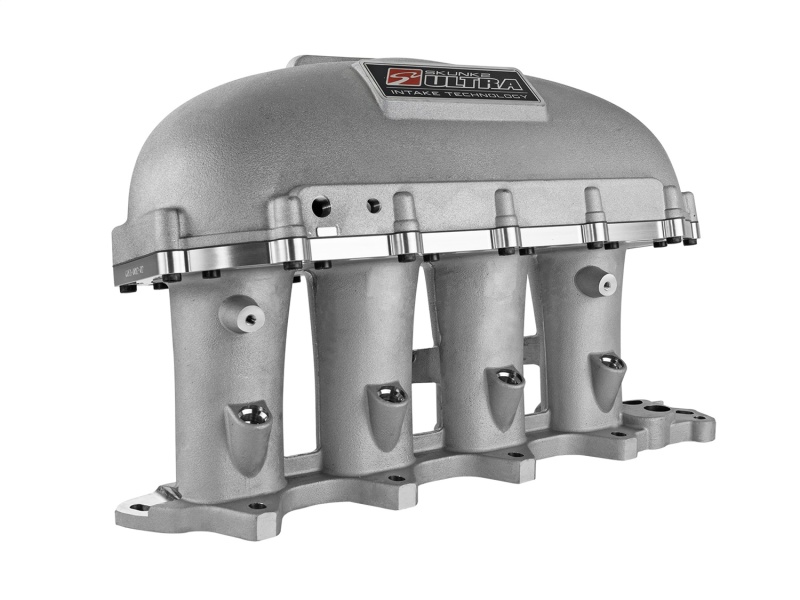

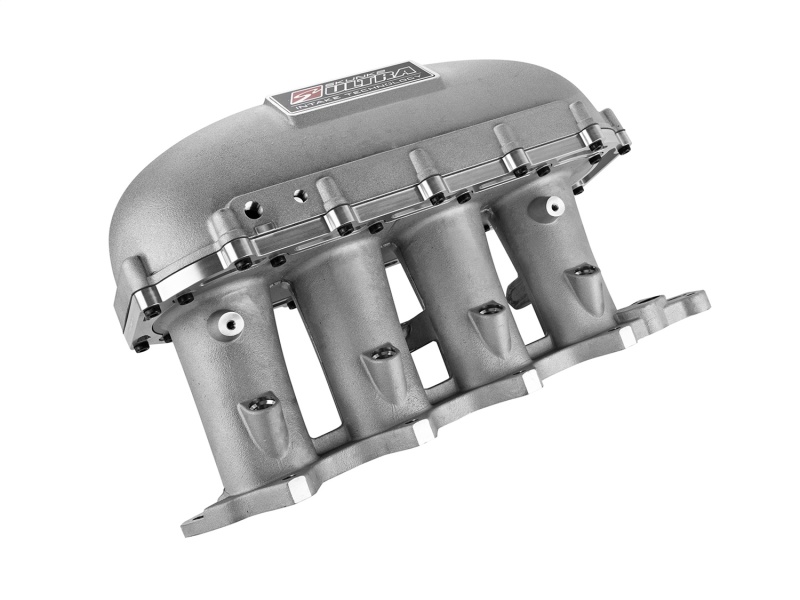

Ultra Series Race Centerfeed Intake Manifold; 5L Volume; 90mm Inlet w/Early 5.0 Ford TB Bolt Pattern; 4 Secondary Injector Passes; Flange Fits B Series Vtec Heads; Silver Adapter;
- 3 in. x 1/8 in. NPT And 3 in. x 1/4 in. NPT Accessory Ports
- Universal Mounting Flange Fits All B VTEC Cylinder Heads

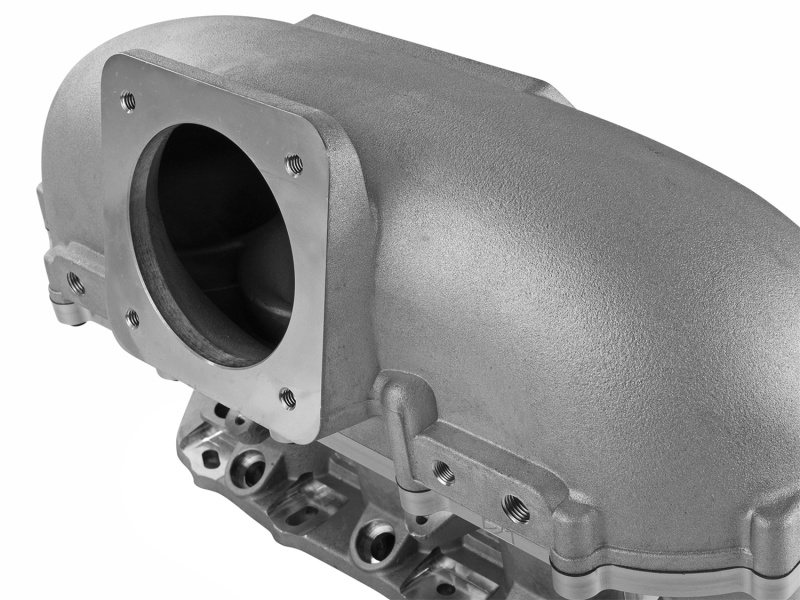

- 90mm Throttle Body Flange – Std. 5.0L Ford Pattern
- Provisions Secondary Fuel Rail And Injectors
- Fits Most Popular Chassis Configurations
- Modular 3pc. Design w/Removable Plenum
- 6.0 in. Tapered Hi-Velocity Runners
- Raised 87mm Velocity Stacks
- Hi-Grade Mounting Hardware
- Thermal Gasket Included
- US Patent No. D673977
- 5.0L Plenum Volume
Fitment:
Acura Integra GS-R 1992 to 2001
Acura Integra Type R 1997 to 1998
Acura Integra Type R 2000 to 2001
Honda Civic Si 1999 to 2000
Honda Civic del Sol VTEC 1994 to 1997
Reviews
There are no reviews yet
