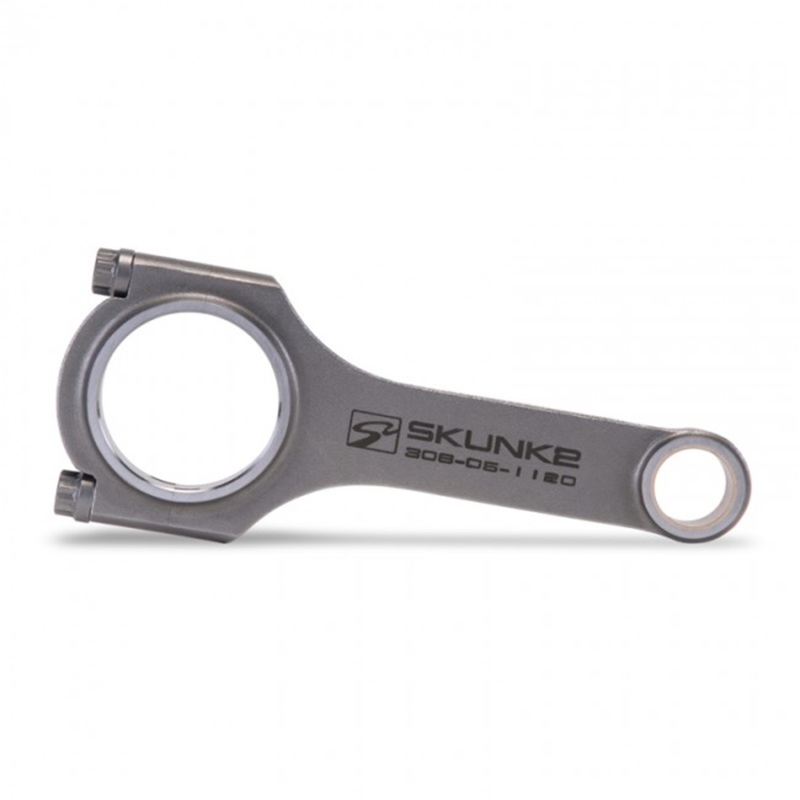

Skunk2 Alpha Series Honda D16/Z6 Connecting Rods (Long Rods)

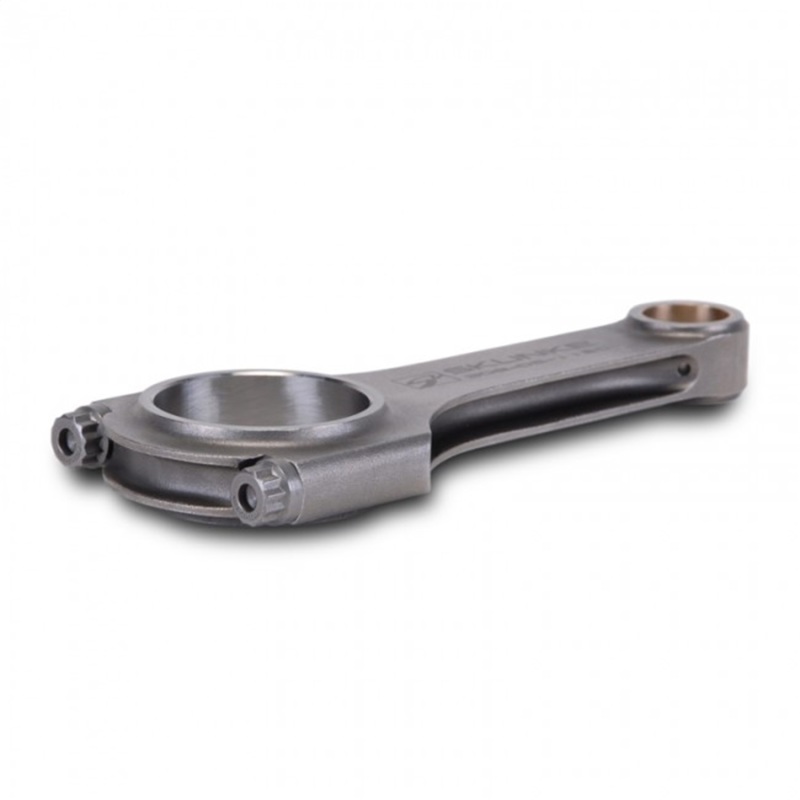

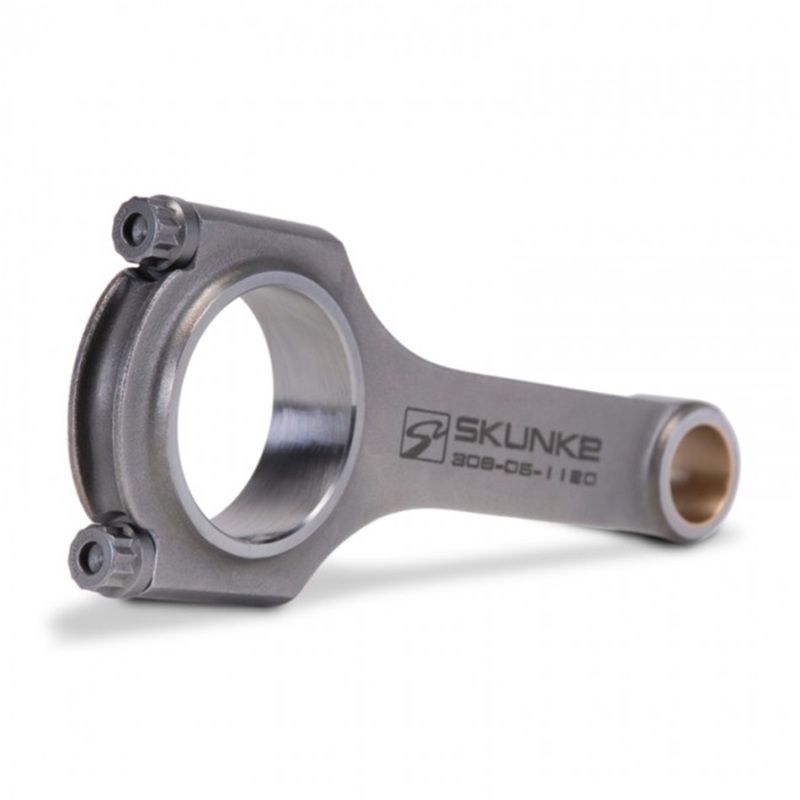

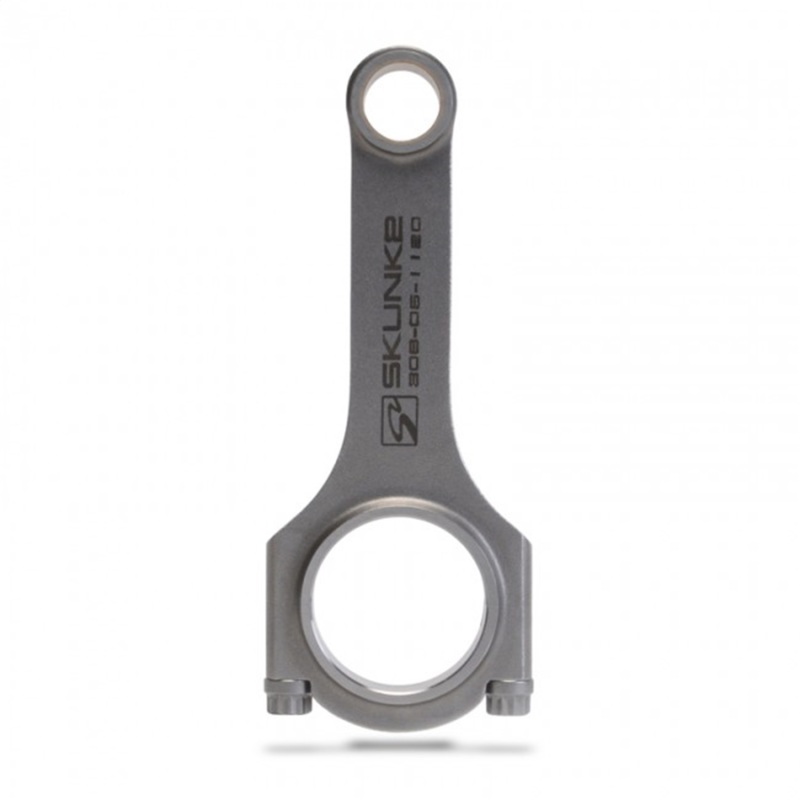

Alpha Series Rods are forged from select 4340 chromoly steel and feature a straight H-beam design, resulting in the ultimate strength-to-weight ratio. 4340 chromoly is one of the strongest materials available, however, not all 4340 chromoly is the same. As such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2’s rigid specifications.

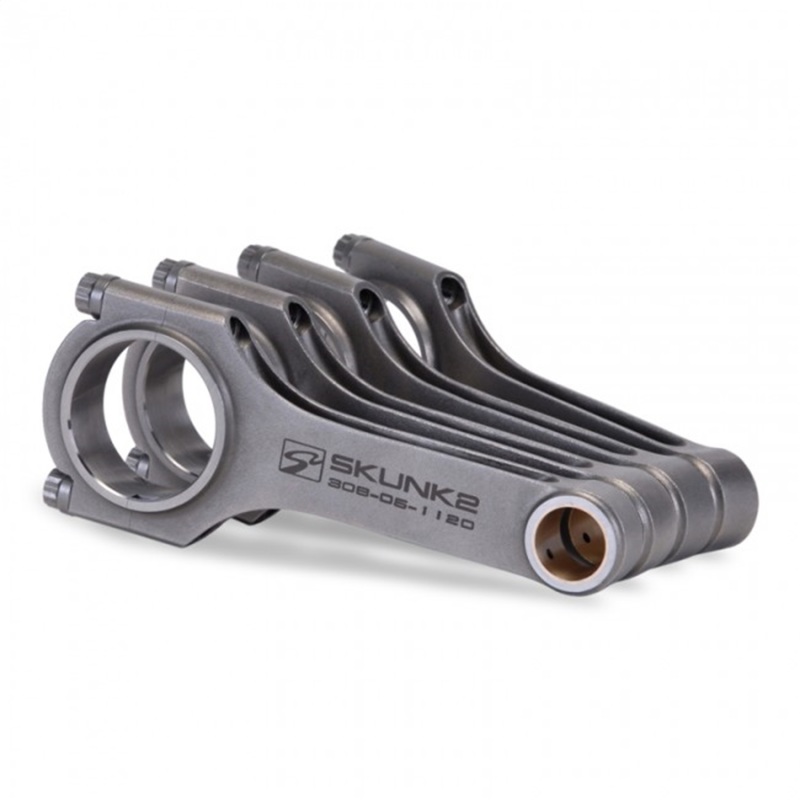

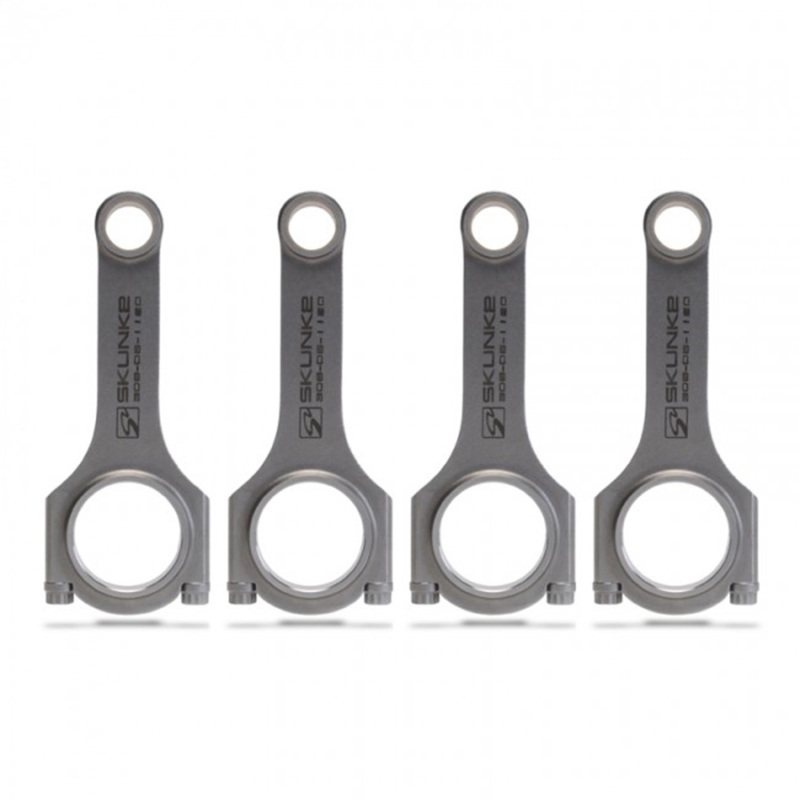

Alpha Series Connecting Rod Set; 138.63mm Length; 457 Grams; Rated to 900HP; H-Beam; Long Rod; Incl. 3/8 ARP2000 Bolts/Lube; 4340 Chromoly Steel; Set of 4;

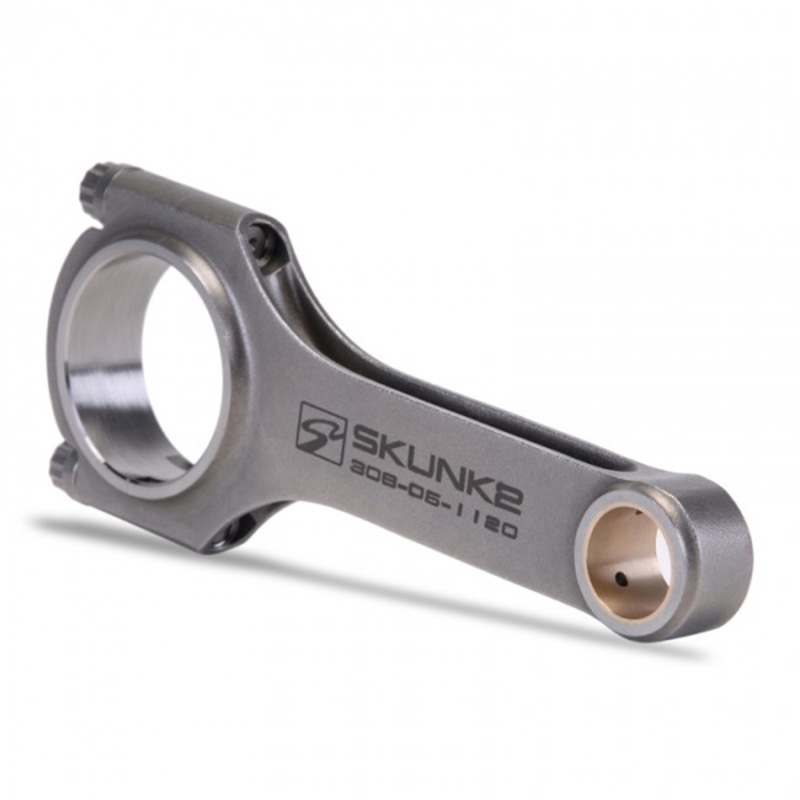

• Dual-Pin Oil Passages For Increased Lubrication And Strength
• Pin End Compatible w/Most Pistons w/o Machining
• Shot-Peened For Reduced Fatigue

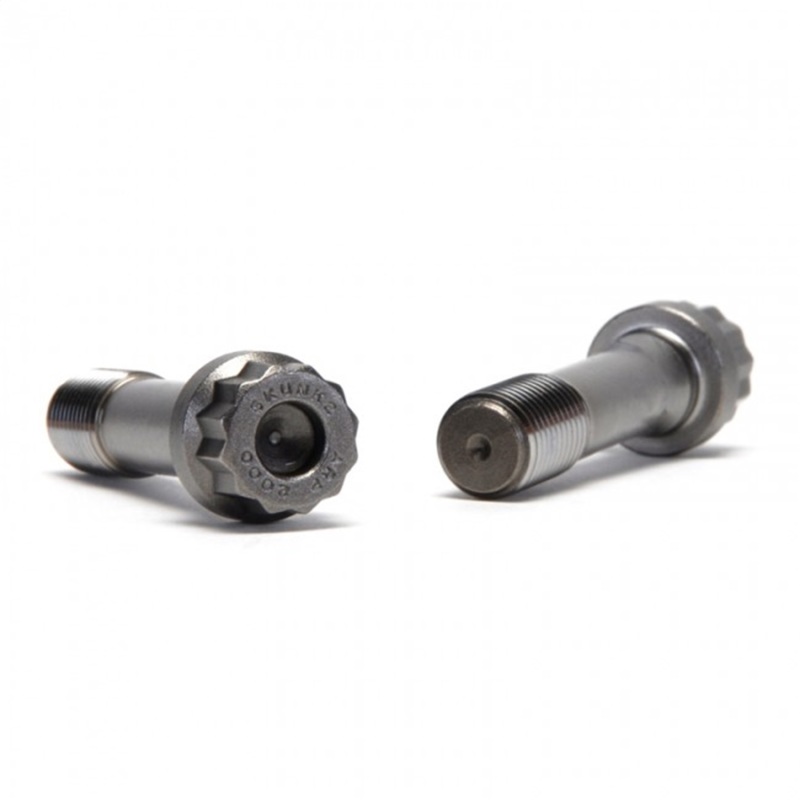

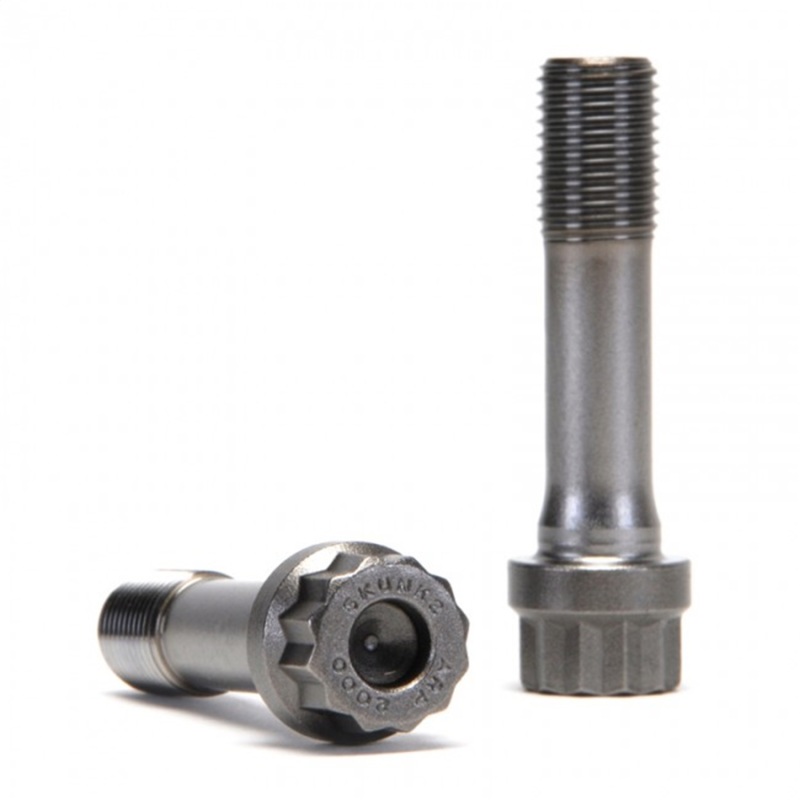

• 3/8-in. ARP2000/Skunk2 Bolts
• Bronze Wrist Pin Bushings
• Magna-flux Inspected
• Balanced +/- 1 Gram
• Weight 510 grams
• Length 138.63mm
• 900+ HP Capable
• Heat Treated
• FEA Analyzed

Fitment:
Honda Civic EX 1990 to 2000
Honda Civic RT 4WD 1988 to 1991
Honda Civic Si 1989 to 1995
Honda Civic del Sol Si 1993 to 1997
Honda CRX Si 1988 to 1991
