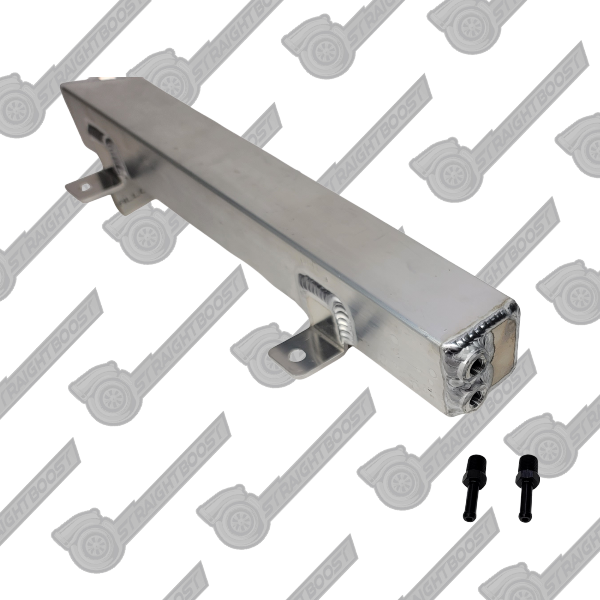

SBP Aluminum Overflow Tank Bottle Reservoir for 79-93 Ford Mustang Foxbody

We are proud to introduce our custom Aluminum Overflow tank that is made mount to your radiator fan shroud.

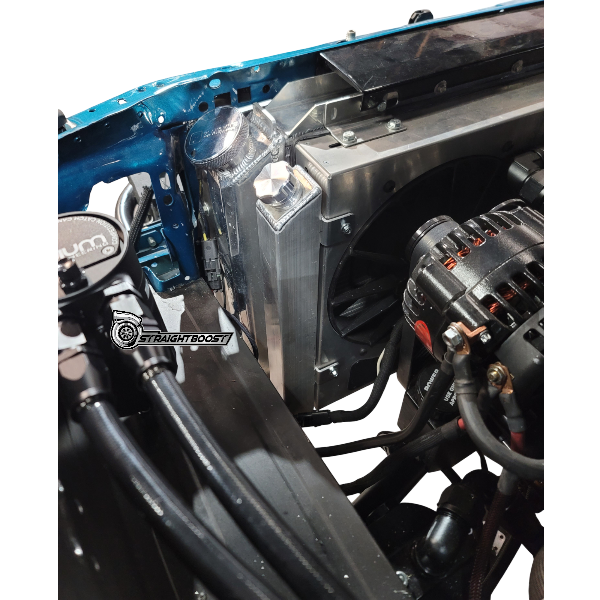

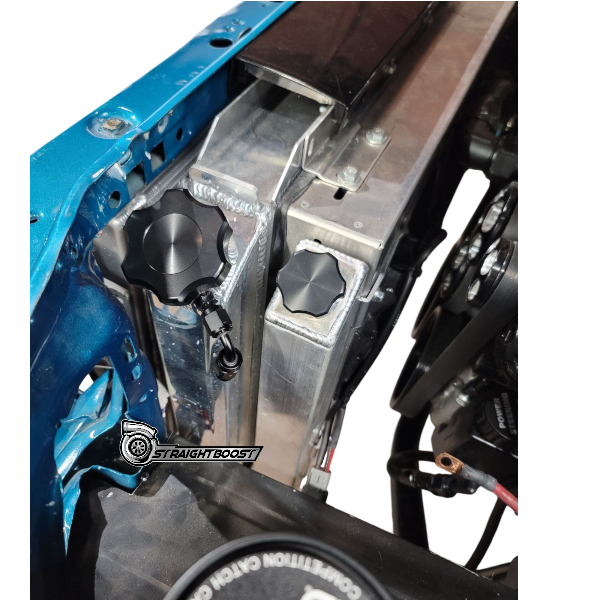

Designed to mount to your radiator shroud on LS style radiators that have the inlet and outlet on the passenger side.

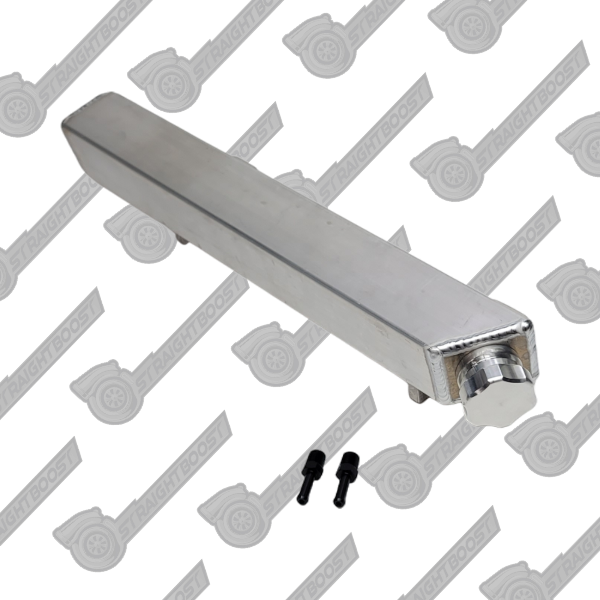

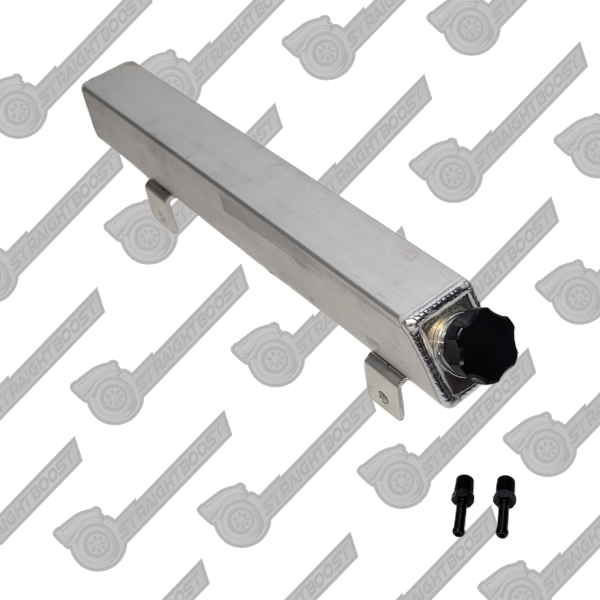

This Overflow tank has two 1/8″ NPT Female ports welded at the bottom. One port connects to the nipple at the radiator cap and the other port is an overflow. If the level in the tank exceeds the maximum it will let excess coolant flow into the overflow tube and out of the second fitting at the bottom of the tank. We recommend running a hose to a safe location where the fluid will not make contact with the tires.

Features:

• TIG Welded 6061 Aluminum
• Angled top to match the angle of most Foxbody radiators
• Our Premium Billet Aluminum Cap
•  2x 1/8″ NPT fittings welded at the bottom of the tank
• Capacity: 0.9 qt / 0.85L

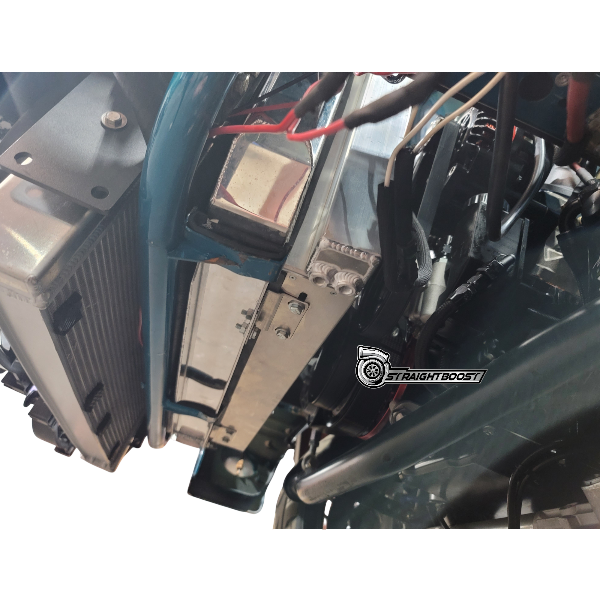

• Installed using two screws (we recommend drilling and installing two riv-nuts in your fan shroud to mount this tank)

**Shrouds with a width less than 2 inches may require the use of spacers in order for this tank to fit. Mounting tabs can be welded in a different location upon request**

• Dimensions: 16″ x 2″ x 2″

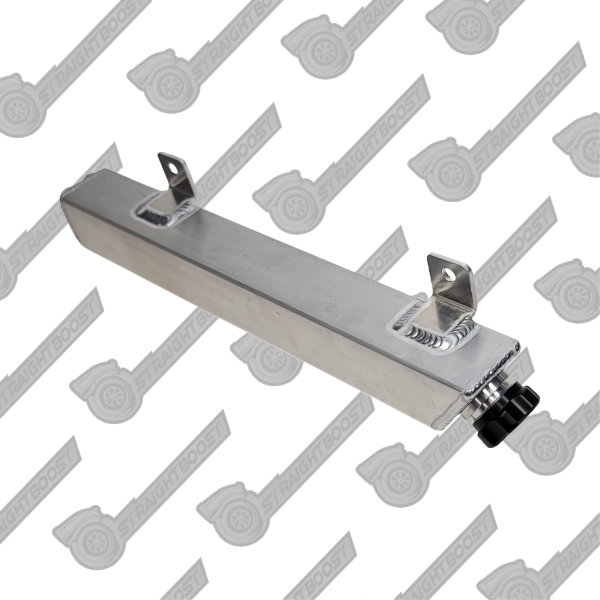

• Center to center bolt spacing: 10″ or 254mm

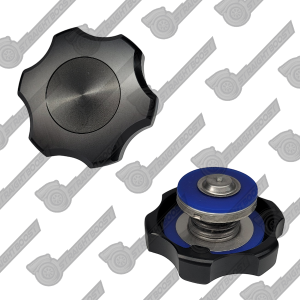

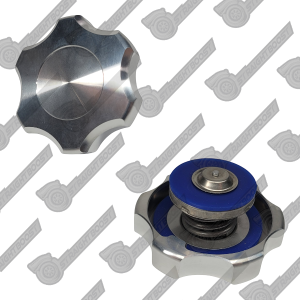

Matching radiator cap can be purchased in our online store.

Due to the manufacturing process, some scratches and or surface imperfections may be present.

Made to order. Lead time 4-10 business days.
