Push Connect Elbow Fitting | for Blow Off Valves, Boost Vacuum Solenoids and more

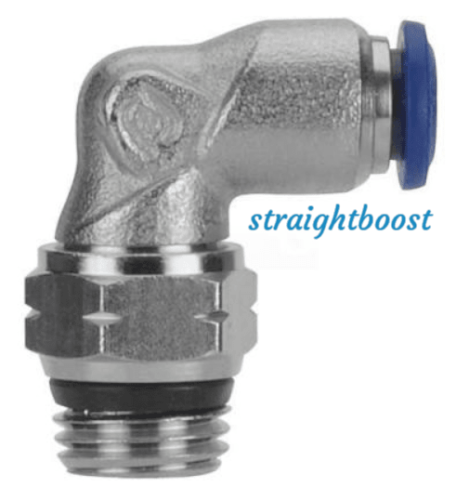

Nickel Plated Brass Push-to-Connect Elbow Fitting – Universal Vacuum/Boost

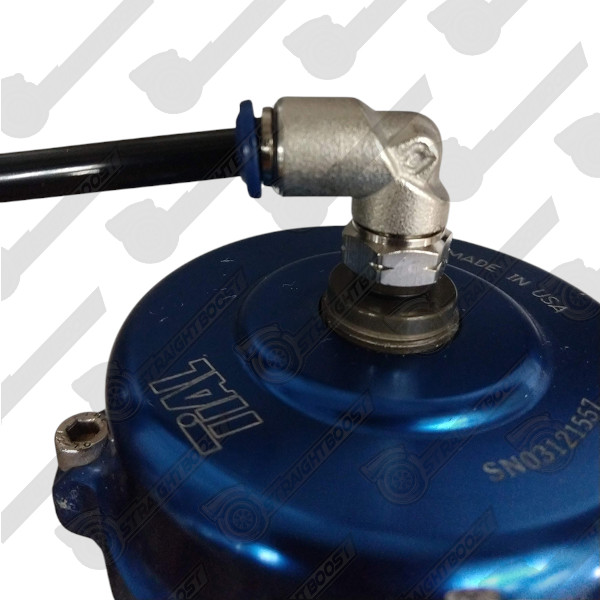

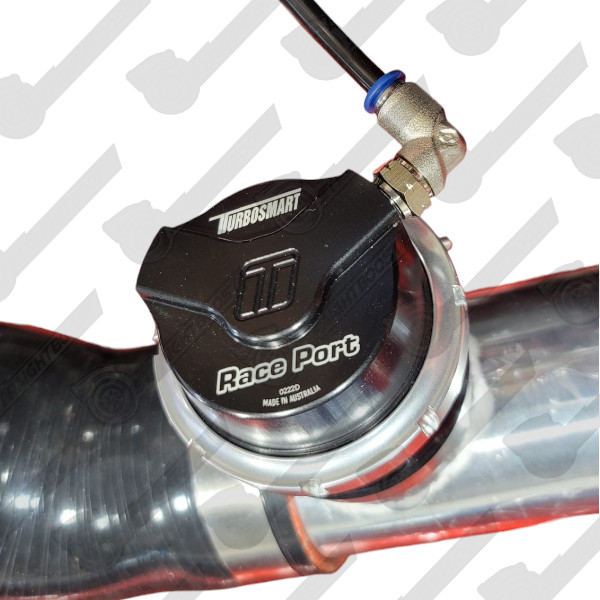

This nickel plated brass push-to-connect elbow fitting is a universal vacuum/boost line fitting designed for fast, secure, and professional-grade connections. Ideal for use with fuel pressure regulators, blow-off valves, boost solenoids, and many other vacuum or boost-related components.

Built with durable brass and a corrosion-resistant nickel finish, this fitting is made to handle both pressure and vacuum applications up to 140 PSI. The One-Touch push-to-connect design eliminates the need for zip ties or hose clamps, providing a clean, reliable seal that won’t slip under pressure.

The 90-degree swivel elbow design allows for easy routing in tight engine bays while maintaining smooth airflow and flexibility.

Features:

• Universal vacuum/boost line fitting

• Durable brass construction with nickel plating

• One-Touch push-to-connect design — no clamps or zip ties required

• Rated for pressure and vacuum applications up to 140 PSI

• 90-degree swivel elbow for compact and flexible installation

• Ultra-secure, leak-resistant connection

Available Thread Sizes for 1/4″ OD Tube:

• M10 x 1.0

• 1/8″ NPT

• 1/8″ BSP

• 1/4″ NPT

• 3/8″ NPT

Installation & Removal:

• To install: Simply push the line into the fitting — it locks automatically

• To remove: Pull back on the blue collet and remove the line

What’s Included:

• 1x 90-Degree Swivel Push-to-Connect Fitting

We offer additional angles and configurations — check out our other listings for more options.
