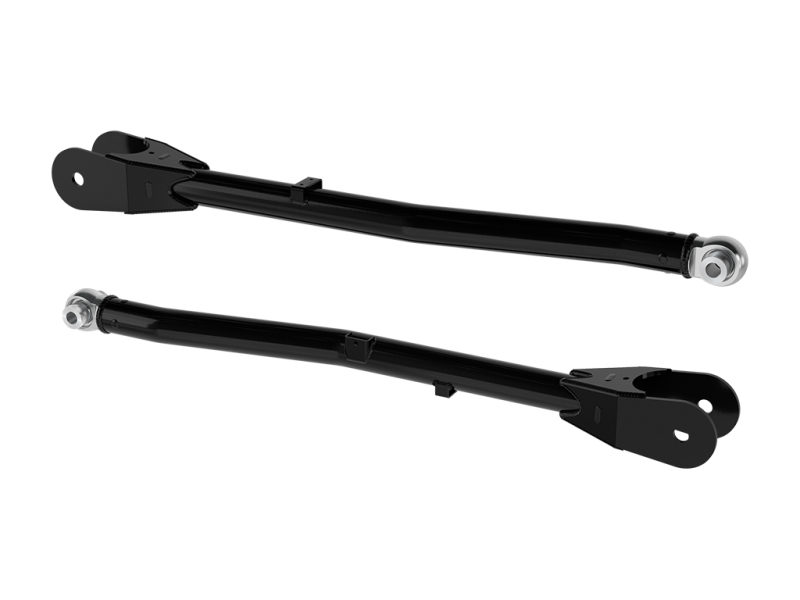

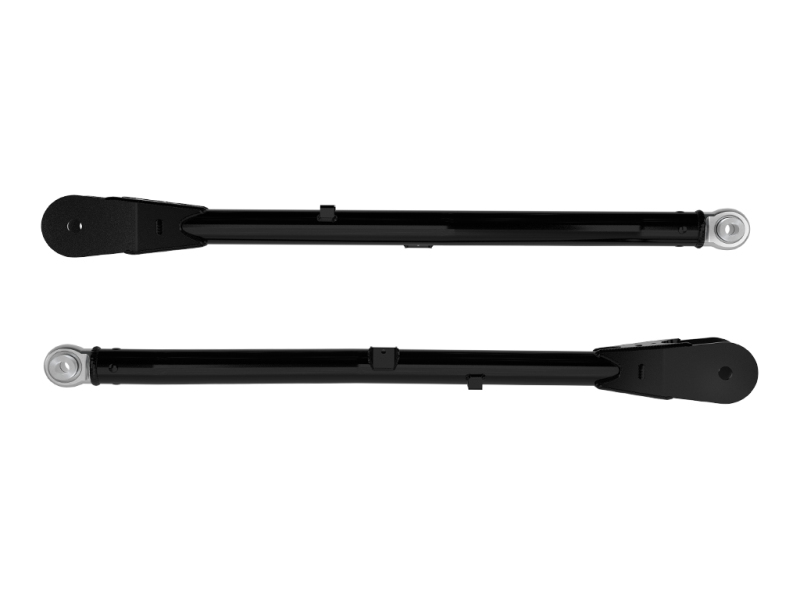

ICON 23-24 Ford F-250/F-350 SuperDuty 4WD Front Upper Links
ICON 23-24 Ford F-250/F-350 SuperDuty 4WD Front Upper Links - Image 2
ICON 23-24 Ford F-250/F-350 SuperDuty 4WD Front Upper Links - Image 3
ICON 23-24 Ford F-250/F-350 SuperDuty 4WD Front Upper Links - Image 4
ICON 23-24 Ford F-250/F-350 SuperDuty 4WD Front Upper Links - Image 5
ICON 23-24 Ford F-250/F-350 SuperDuty 4WD Front Upper Links - Image 6

ICON 23-24 Ford F-250/F-350 SuperDuty 4WD Front Upper Links

$980.95

Availability: 2 in stock

SKU: 64052 Category: Tags: , Brand:
Guaranteed Safe Checkout

These upper links are an essential component of the ICON 2023-2025 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.
The ICON 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation and improves handling of the truck by maintaining consistent caster angles and eliminating bushing bind in the stock radius arms.
TECH NOTE: Requires ICON 4-Link brackets, part number 64053, and ICON lower links, part number 164502, for complete installation.

  • 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
  • Upper links are constructed from CNC machined 2” x .188” wall DOM steel tubing
  • Allow on-vehicle caster adjustment via ICON double adjusters in lower links
  • Fabricated components covered under ICON’s Limited Lifetime Warranty
  • Improves front end articulation and overall drivability
  • Corrosion resistant semi-gloss black powder coat finish
  • PTFE lined FK spherical bearings eliminate deflection

Fitment:
Ford F-250 Super Duty King Ranch 2023 to 2024
Ford F-250 Super Duty Lariat 2023 to 2024
Ford F-250 Super Duty Limited 2023 to 2024
Ford F-250 Super Duty Platinum 2023 to 2024
Ford F-250 Super Duty XL 2023 to 2024
Ford F-250 Super Duty XLT 2023 to 2024
Ford F-350 Super Duty King Ranch 2023 to 2024
Ford F-350 Super Duty Lariat 2023 to 2024
Ford F-350 Super Duty Limited 2023 to 2024
Ford F-350 Super Duty Platinum 2023 to 2024
Ford F-350 Super Duty XL 2023 to 2024
Ford F-350 Super Duty XLT 2023 to 2024

Weight 41.3 lbs
Dimensions 48 × 8.6 × 5.9 in
air_freight_prohibited

false
not_carb_approved

false
carb_acknowledgement_required

false
ltl_freight_required

false
prop_65

Y
part_type

automotive
epa

N/A
regular_stock

false
clearance_item

t
brand

ICON
part_number

64052
