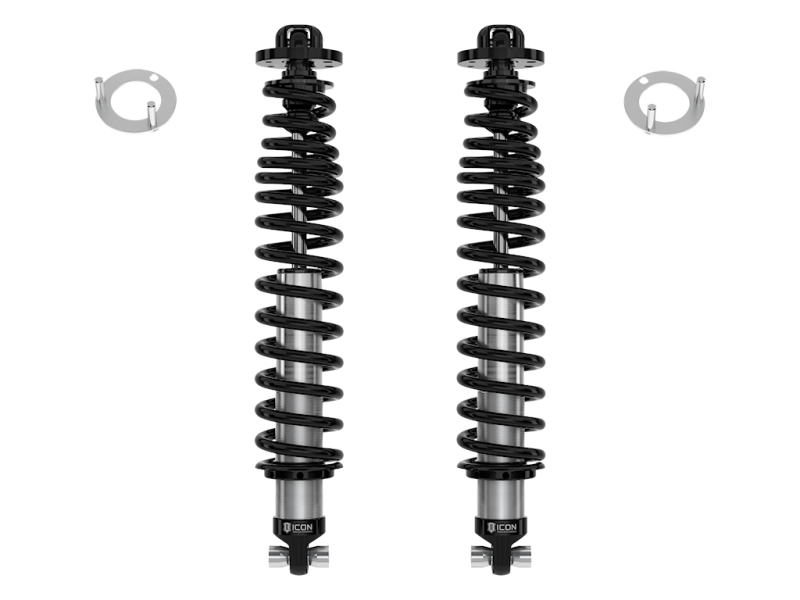

ICON 21-23 Ford Bronco Rear 2.5 VS IR Coilover Kit Heavy Rate Spring

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir rear coilover shocks are an incredible upgrade for the rear end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain.

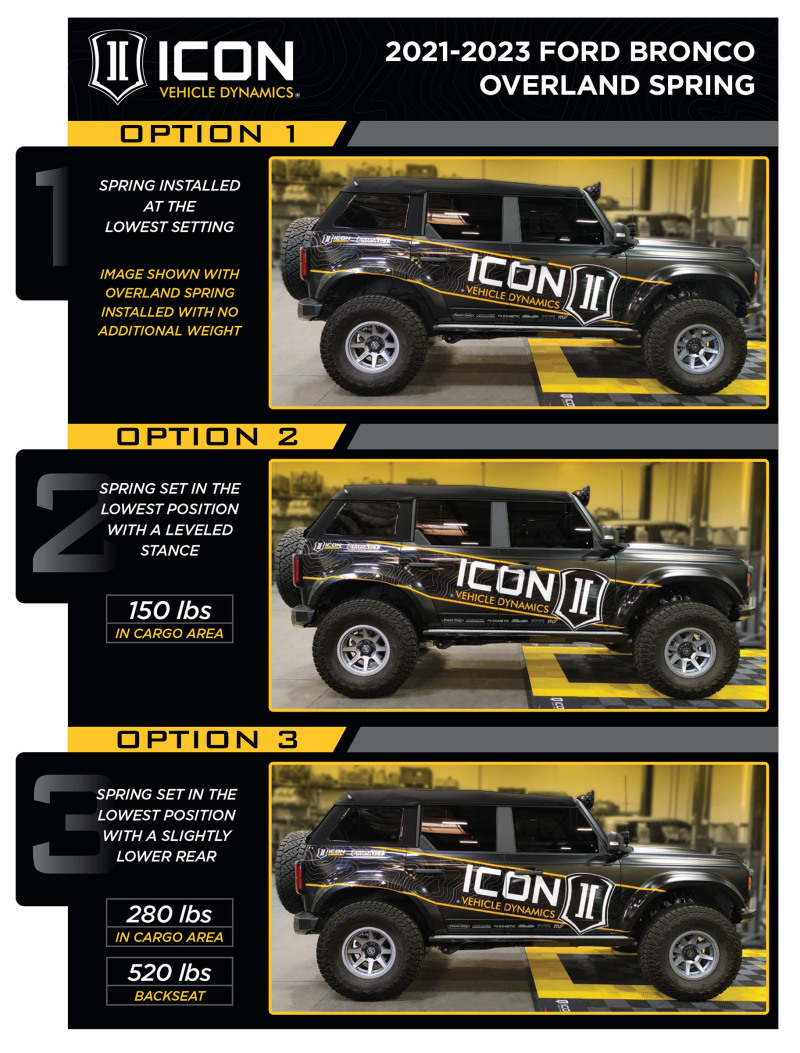

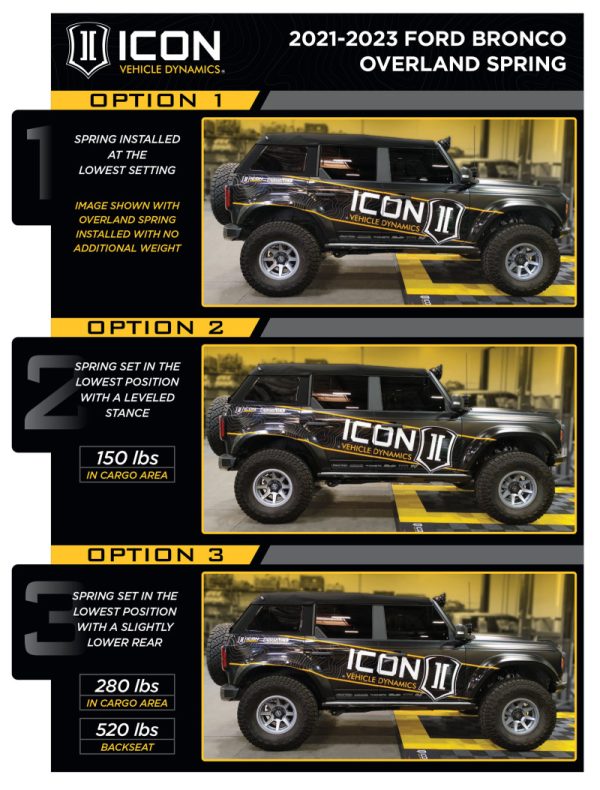

TECH NOTE: ICON Heavy Rate Rear Coil Springs are optimized for increased rear ride height on Broncos with additional weight added to the rear. ICON Heavy Rate Rear Coil Springs will result in a slight positive rake when the Bronco is unloaded. For near stock weight Broncos, consider part number 48610.

• Adjustable up to 2-3″ of rear lift height on non-Sasquatch or 1.25-2.25” of rear lift on Sasquatch Broncos
• Unique ICON engineered dual rate coil springs with increased spring rates for heavier equipped Broncos
• 100% Bolt-on – no drilling, cutting or welding necessary for installation
• Corrosion resistant CAD plated shock bodies with 7/8″ diameter shaft
• FK rod end bearings for extended longevity and minimal deflection
• Increased wheel travel (up to 14”) and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• 6061 Aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

Fitment:
Ford Bronco Badlands 2021 to 2023
Ford Bronco Base 2021 to 2023
Ford Bronco Big Bend 2021 to 2023
Ford Bronco Black Diamond 2021 to 2023
Ford Bronco Everglades 2022 to 2023
Ford Bronco First Edition 2021
Ford Bronco Heritage Edition 2023
Ford Bronco Heritage Limited Edition 2023
Ford Bronco Outer Banks 2021 to 2023
Ford Bronco Wildtrak 2021 to 2023
