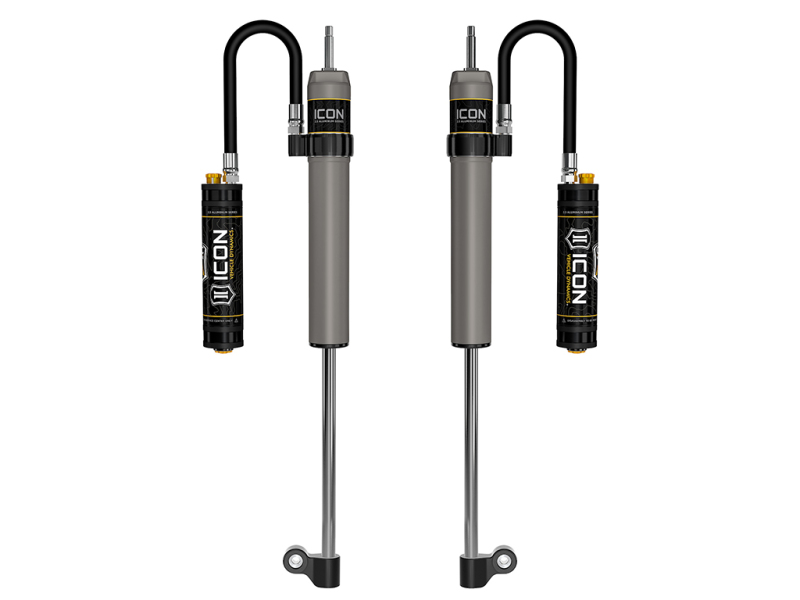

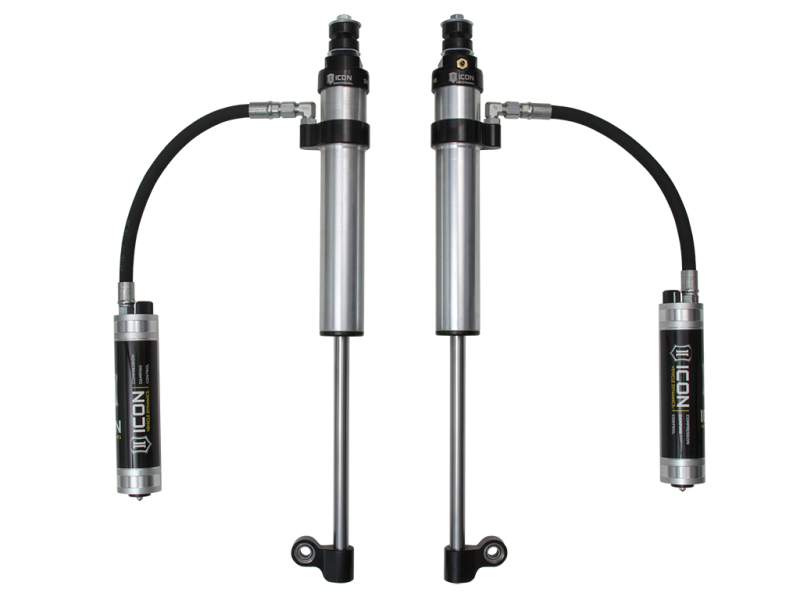

ICON 2007+ Toyota Tundra RXT Rear 2.5 Series Shocks VS RR CDCV – Pair

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
2007-2021 TOYOTA TUNDRA RXT REAR 2.5 VS REMORE RESERVOIR WITH CDCV SHOCK PAIR
ICON Multi-Rate Leaf Springs Part # 158509 required for installation

• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• ICON’s CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• Double-sealed Schrader caps reduce risk of damage
• 100% Revalveable
• 100% Rebuildable

Fitment:
Toyota Tundra 1794 Edition 2014 to 2021
Toyota Tundra Base 2007 to 2013
Toyota Tundra Limited 2007 to 2021
Toyota Tundra Nightshade 2021
Toyota Tundra Platinum 2010 to 2021
Toyota Tundra SR 2014 to 2021
Toyota Tundra SR5 2007 to 2011
Toyota Tundra SR5 2014 to 2021
Toyota Tundra Trail 2021
Toyota Tundra TRD Pro 2015 to 2017
Toyota Tundra TRD Pro 2019 to 2021
