SBP IGN-1A Race Ignition Coil Kit for Nissan Skyline GTS-T RB25DET RB25 RB20DET RB20 (Black)

Here at Straightboost® Performance we always look forward to releasing exciting and new products for the Automotive Performance community.

We are proud to announce the release of our “Race Ignition Coil kit” for the RB engine enthusiasts. This kit can also be used on a street car without any issues. We have been using this kit on our RB25 Powered Datsun 260z for over 5 years without any issues.

These coils are so powerful that we run factory spark plug gap at 40 pounds (4.0 bar) of boost without having any spark blow out or misfire issues!

This kit will allow you to use the IGN-1A ignition coils on your RB20 or RB25 engine.

***The AEM Ignition coils included with our kit can deliver almost double the spark energy compared to the more expensive R35 GTR Ignition coils! Comparison video posted below.***

The tradeoff between adequate spark energy and adequate spark duration ends with AEM’s High-Output Inductive Coils, the first inductive coils that deliver CDI-like spark energy and voltage, and the long spark duration necessary for vehicles running high compression, high RPM, forced induction and/or nitrous engines.

Auto enthusiasts who have forced induction engines, high RPM engines or run nitrous oxide are aware of the compromises that come with using inductive coils instead of converting to a Capacitive Discharge Ignition system (CDI). While inductive coils deliver a long spark duration with simplicity, they lack the energy to adequately ignite the mixture in the combustion chamber of a highly modified performance vehicle. Conversely, CDIs deliver an intense burst of spark energy, but with practically no spark duration, which makes having the proper air/fuel mixture in the combustion chamber paramount for best performance. This compromise ends with AEM’s High-Output IGBT “Smart” Inductive Coils.

AEM’s High-Output, Insulated Gate Bipolar Transistor (IGBT) “Smart” Inductive Coils are designed for use on applications that do not have an external igniter.

AEM’s High-Output Inductive Coils each deliver over 100mJ of spark energy and a minimum of 40,000 Volts—as much as most CDI systems, without the need for a CDI module! They also provide very long spark duration at full energy, unlike CDI systems and multiple spark systems which fire off small spark events prior to and after their CDI burst to mimic longer spark duration.

• Massive Spark Energy, up to 103 mJ
• Incredibly long spark duration, up to 2.9mS
• Up to 40kV Output Voltage, without using a CDI
• Deliver CDI-like spark energy—No CDI Module needed
• Cost less than aftermarket LS1 coils
• Can be mounted almost anywhere
• Weather and Shockproof design
• Can be mounted directly to the Engine

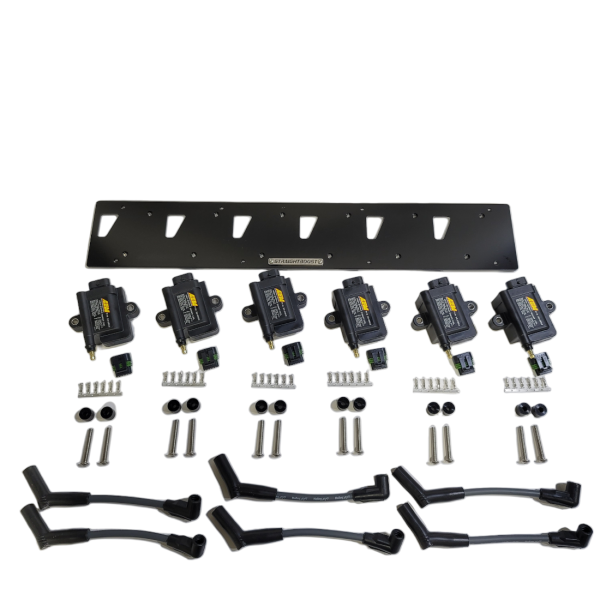

Included with this kit:

• Straightboost Performance ignition coil mounting plate.

** Satin Black Powder-coat Finish **

(This plate replaces your OEM coil cover plate)

• 6x AEM smart ignition coils.
• 6x Coil connectors with wiring pins.
• 6x Holley-EFI 8.0mm spark plug wires.
• 12x Billet aluminum spacers
• 12x Coil to plate mounting bolts.
• 8x Coil plate to valve cover installation bolts & washers.

Professional installation is required! Wire harness will have to be built or ordered from a 3^rd party. We are currently working on developing a harness to work with these coils. Send us a message us with any questions.
