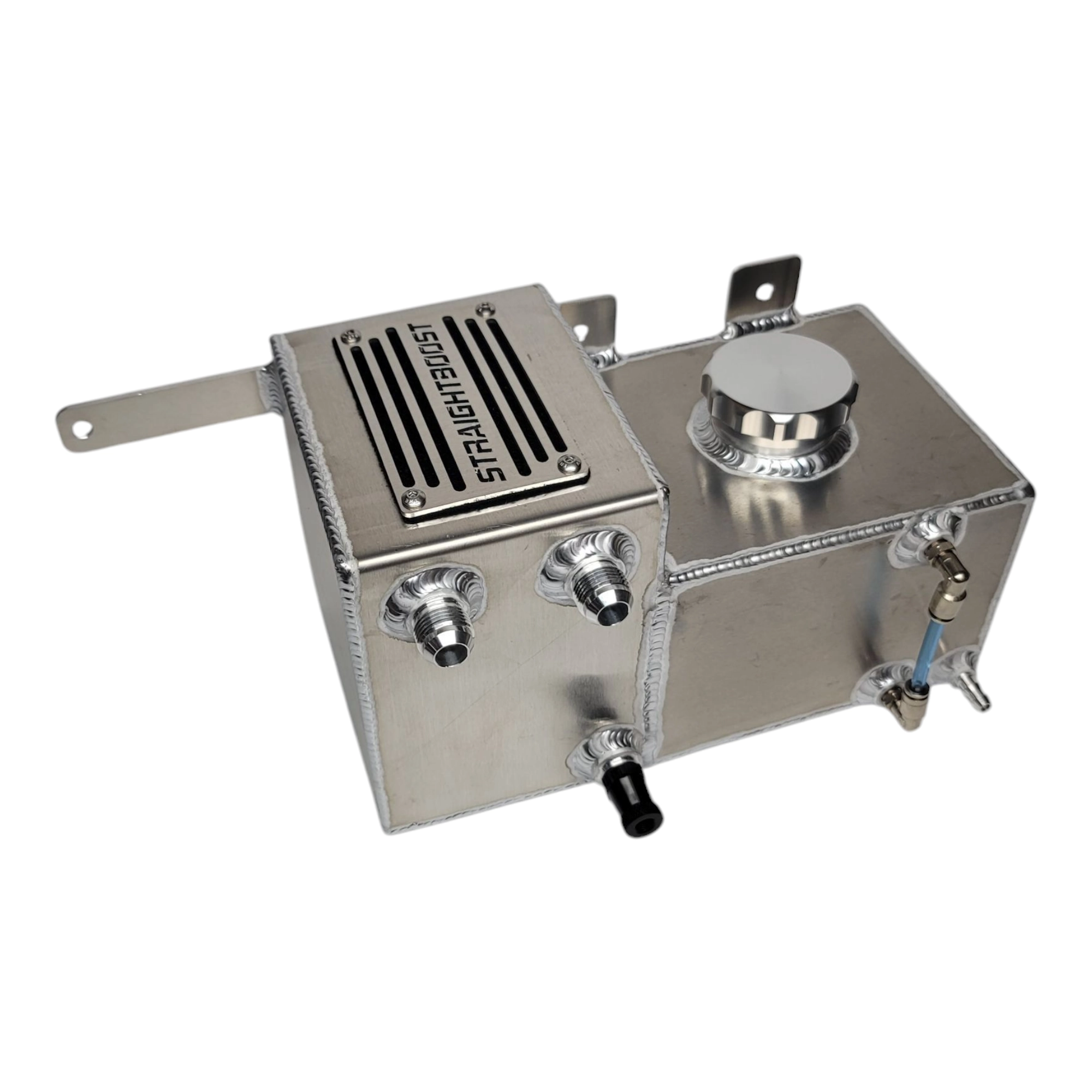

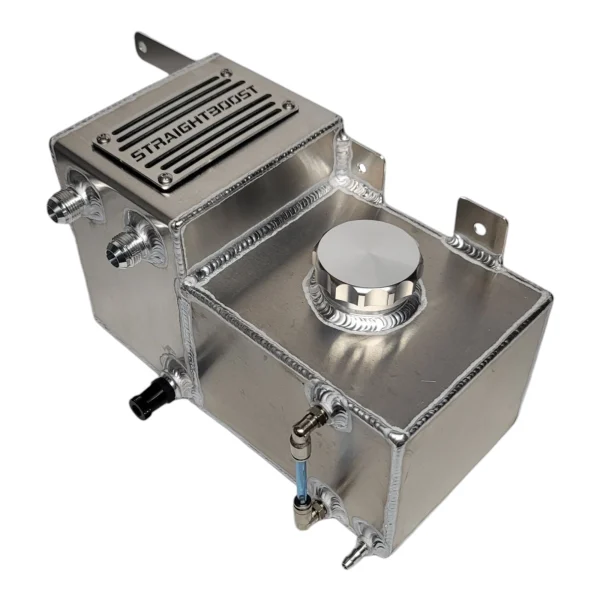

SBP Aluminum Coolant Overflow Oil Catch Can Combo Tank Bottle for 1994-1998 Ford Mustang SN95

Here at Straightboost® Performance we always look forward to releasing exciting and new products for the automotive performance community.

We are proud to announce the release of our custom coolant overflow and oil catch can combo tank for the 1994-1998 Ford Mustang SN95 Models.

This tank mounts in the original battery tray area near the front LH fender. The battery will need to be relocated for this tank to fit and you will be required to drill 3 mounting holes in order to mount this tank.

Functionality information:

• The overflow portion of the tank allows the radiator to dump fluid into the overflow tank to be emptied later on. We can also make this a two way flow unit, meaning the radiator can dump fluid and later retrieve the fluid as needed just like most OEM applications. Please contact us if you need this to work both ways, we will make the tank according to your needs.



• The oil catch can uses our special 3 way baffle design. This design has been proven to remove as much oil as possible without causing a restriction in the system for optimal performance.



Please keep in mind, this tank can be customized to your needs accordingly. Can be made with different fittings or the fittings in different locations.



Brand: Straightboost

Material: Grade 5052 Aluminum

Finish: Natural Aluminum

Fully TIG Welded Construction.



Coolant Side Features:

-Coolant level indication sight tube

-Billet aluminum cap

-1/4″ Overflow Barb Nipple

– Billet Aluminum Drain Valve featuring 1/8″ NPT thread for the ability to connect a fitting and hose to drain remotely.



Oil Catch Can Side Features:

-2 x 10AN inlet ports

– Billet Aluminum Drain Valve featuring 1/8″ NPT thread for the ability to connect a fitting and hose to drain remotely

– Our special multi level baffle design

– Breather filter screen

– Laser cut aluminum retaining plate for breather screen



Dimensions (See Photo):

12″ (254mm) – Long

6.0″ (152mm) – Wide

7″ (203mm) – High (Larger side)

5″ (127mm) – High (Lower side)



Proudly made in the USA!

** Light surface scratches may be present due to the manufacturing process**

These tanks are currently made to order! Current production time 5-10 business days.

For any special requests Email or call us prior to purchasing.

For Off-road or Race use only!
