SBP Custom Front Mount Intercooler FMIC for 1970-1978 Datsun 240Z 260Z 280Z Turbo 1JZ 2JZ RB20 RB25 RB26 RB30

(1 customer review)

$1,124.85$1,268.85

Guaranteed Safe Checkout

Here at Straightboost® Performance we always look forward to releasing exciting and new products for the Automotive Performance community.

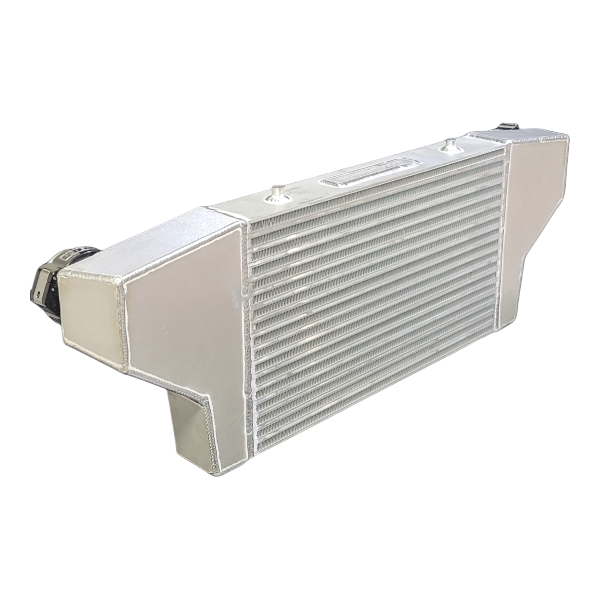

We are proud to announce the release of our Custom made aluminum intercooler for the Datsun 240z, 260z and 280z models.

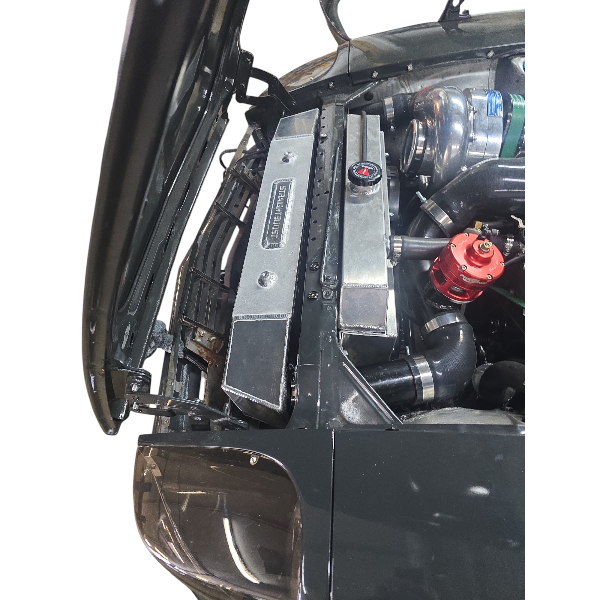

This is the largest intercooler that fits inside of the Datsun S30Z cars without any interference issues of the hood hinge. We have experienced a lot of issues from this in the past and have decided to make an intercooler that will not be in the way of the hood hinge mechanism and will outperform any other China made intercooler out there.

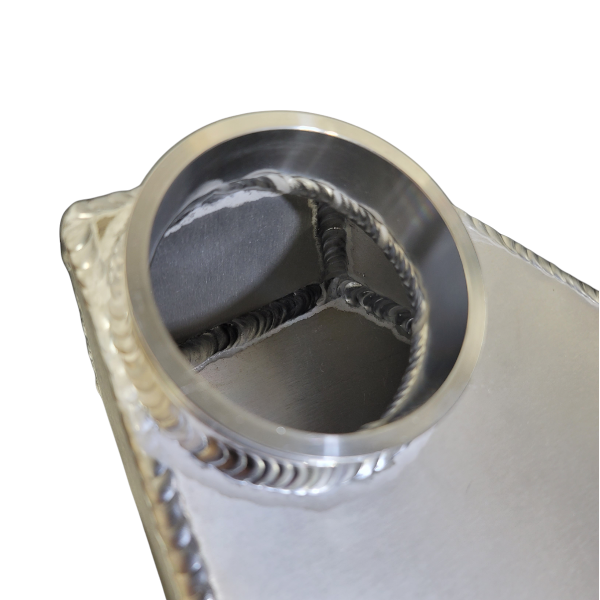

We use a high quality brand name core (Garrett, CSF Race, Vibrant Performance) and laser cut the end tanks out of 3/16″ thick (0.187″ or 4.7mm) grade 5052 Aluminum alloy to ensure everything fits just right. After the cutting is done we TIG weld the end tanks inside and outside to prevent failures in the future. At this time we are one of the only fabrication shops that weld the intercooler end tanks inside and outside.

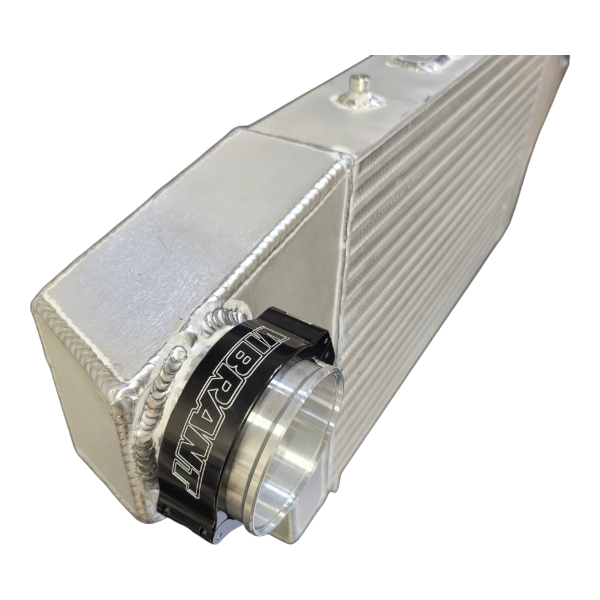

This intercooler has been fitted with the Vibrant Performance HD Clamp assemblies. These clamps are a great upgrade for a leak free seal. You will need to weld your cold and hot side intercooler tubes to these flanges in order for this system to work. If this is an issue for you we can also make it traditional style as well with your normal in/out ports to use a silicone coupler.

We also offer various thickness options from 3.0″ to 4.5″ cores are available. Please contact us to place an order or if you have any questions.

Features:

  1. High quality Bar and Plate intercooler core.
  2. Precision Laser cut 5052 aluminum sheet metal end tanks (4.7mm / 3/16″ thick)
  3. Professionally TIG welded inside and outside.
  4. Vibrant HD Clamp Assemblies (Select from drop down menu)

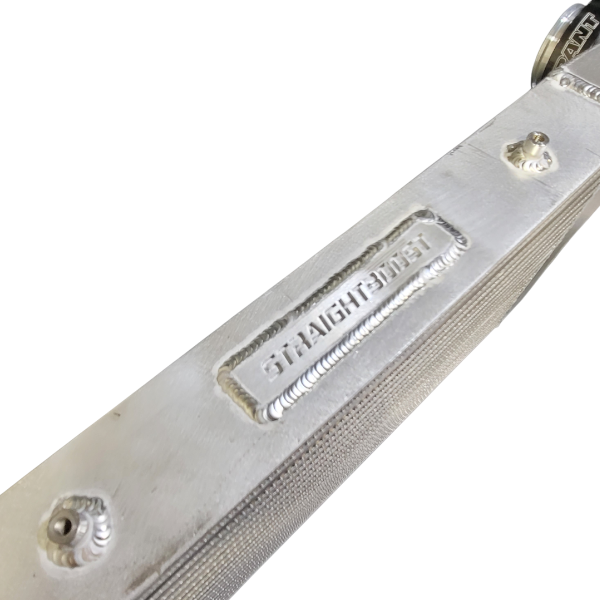

  5. Billet aluminum M8x1.25 mounting points (two on the top and two on the bottom)
  6. Raw Aluminum finish (Powder-coat finish with custom colors is available. Please contact us for more info)

Proudly made in the USA!

** Light surface scratches may be present due to the manufacturing process**

Some cutting and trimming of your vehicle’s radiator support will be required for  inlet and outlet port clearance.

Professional Installation is required!

 For Off-road or Race use only!

These are made to order. Lead time is 4-6 weeks.

Weight 28 lbs
Dimensions 36 × 14 × 10 in
Core Thickness

3in (700HP), 3.5in (850HP), 4in (900HP)

LH Port

2.5in, 3.0in, 3.5in

RH Port

2.5in, 3.0in, 3.5in

1 review for SBP Custom Front Mount Intercooler FMIC for 1970-1978 Datsun 240Z 260Z 280Z Turbo 1JZ 2JZ RB20 RB25 RB26 RB30

  1. Alan H.

    I’m really impressed with the quality and the welds. Performed great on the dyno, the IATs dropped by 28F compared to a China intercooler I had, same size and all and it Made my Z look even more bad ass!
